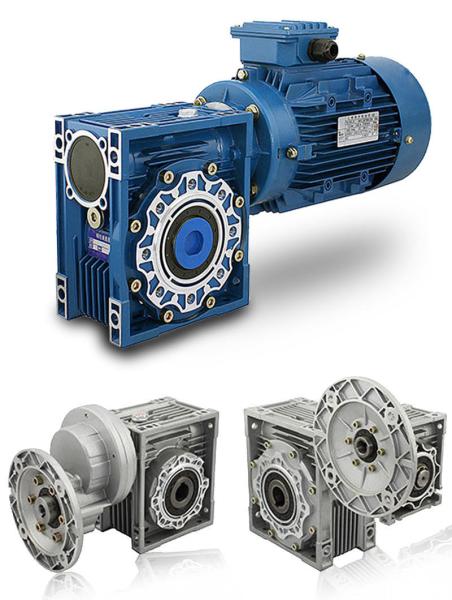

NMRV Worm Gear Speed Reducer with Double Shaft High Torque Worm Gear Reducer

Description

This type of Worm Gear Speed Reducer can change shaft rotation direction while the wiring positive and negative be changed. It's also have addition two characteristics: 1.With self-locking, the output shaft can't rotation when switch off, that is self-locking;

2.Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.

Features:

NMRV 050 series worm gear speed reducer.

It is solidly constructed and ready to install in numerous applications.

Output is 646 lb/in on a hollow 1" diameter x 3-5/8" long keyed shaft.

High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.

This 20:1 ratio speed reducer is rated for 1.14 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.

Used for automatic window curtain, grill, robot, optic equipment, electronic game machine, cleaning machine, coin refund devices, miniature hoist, etc.

Technical Parameters:

Ratio: 20:1

Mounting Flange: 56C

Material: Cast Aluminum

Max. Rated Horsepower: 1.14HP

Input Shaft Diameter: 5/8 inch

Output Shaft Diameter: 1 inch

Input Shaft Length / Depth: 1-7/8 inch

Output Shaft Length / Depth: 3-5/8 inch
