Foot-mounted S series gear reducer helical worm gear reducer with double solid shaft

Description :

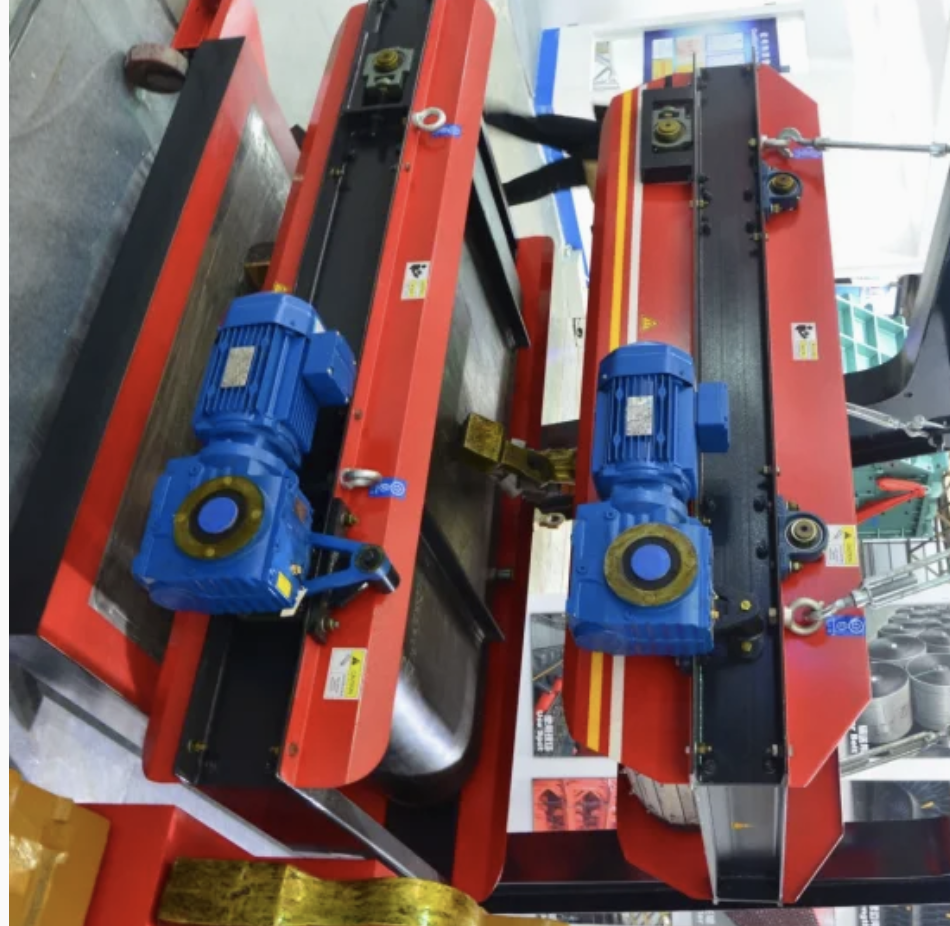

our high-efficiency helical-worm gear units featuring a simple yet effective design. The accompanying figure showcases a gearmotor integrated with a helical-worm gear unit, emphasizing its cost-effectiveness.

The ability to individually adjust torque and speed facilitates space-saving installations of our helical-worm gear units. Available in various configurations, including double, triple, quadruple, and quintuple reduction units, they can be mounted on foot, flange, or shaft. Choose from motorised, motor-ready, or reducer options with a keyed input shaft for added versatility.

Experience the convenience and efficiency of our helical-worm gear units, tailored for diverse industrial applications.

Feature
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)

Main Application Industries

1.Food light industry, electrical machinery, engineering machinery, metallurgical machinery;

2.Cement machinery, environmental protection machinery, electronic appliances, road construction machinery;

3.Water conservancy machinery, chemical machinery, mining machinery, transportation machinery;

4.Building materials machinery, rubber machinery, petroleum machinery and other industries.

Why choose us :

Quality Control Standards

1. Body / Box Body
(1) The section of the cover and the body shall be smooth and smooth to ensure tight assembly. Check the contact tightness of the section, that is, the insertion depth of the plug ruler less than 0.05mm shall not be greater than 1 / 3 of the section.
(2) The upper cover and the body shall not crack, and the kerosene inspection shall not contain leakage.

2. Dute Line Cylindrical Gear
(1) The gear shall not have defects in burrs, cracks, fractures, etc.
(2) gear engagement that the tooth height and tooth width is not greater than 20%.
(3) gear must be correctly engaged after assembly and its contact area shall meet the provisions in Table 1.
(4) The side clearance of gear engagement shall meet specified in Table 2.
(5) The top gap of the gear engagement is 0.2~0.3m (m is the normal modulus).
(6) Check the side and top clearance of the gear by pressure lead method and if not in accordance with Articles (4) and (5), the center distance may be corrected in Table 2 and (5)
(7) The center distance limit deviation of both gears shall meet the provisions in Table 3.
(8)The parallelism of the gear centerline on the tooth width is not greater than that specified in Table 4
(9)The radial beat of the gear rim shall not be greater than that specified in Table 5
(10)The maximum allowable wear value of tooth thickness at the gear section circle shall meet Table 6.

3. Bevel Gear Wheel
(1) The gear must be smooth without burrs, scars, cracks, etc.
(2) The limit deviation of the clip angle of the gear shaft is specified in Table 7.
(3) The displacement of gear centerline shall not be greater than specified in Table 8 and the displacement inspection method is shown in FIG. 4.
(4) The side gap of gear engagement shall meet the provisions in Table 9
(5) Top gap of gear engagement is 0.2~0.3m.(The m is the large-end module number)
(6) The displacement of the gear cone shall not be greater than that specified in Table 10

Shanghai Fanbao Industrial Factory, established in 2009, specializes in the research and development as well as the manufacturing of various industrial equipment including mixing tanks, agitators, industrial mixers, PE tanks, stainless steel mixing tanks, liquid mixers, powder mixers, cycloid reducers, gear reducers, environmental protection water treatment mixing equipment, precision rotary valves, and rotary airlock feeders.

With a strong focus on R&D, design, manufacturing, and rigorous testing methods, the company boasts a comprehensive technical expertise. It stands out among domestic manufacturers due to its wide range of product specifications and varieties.

In recent years, Shanghai Fanbao has significantly increased its investment in research and development. The company now features a dedicated design team to enhance the production of reducer products. Offering a diverse selection of mixers, rotary valves, and discharge valves with hundreds of specifications, the materials used include cast carbon, carbon steel, stainless steel, and more to cater to various industries, media types, and working conditions.

Their products such as mixing tanks, cycloidal gear reducers, helical gear reducers, rotary airlock valves, and rotary feeders find extensive applications across industries like grain and oil, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, and dust removal.

Adhering to the principle of "quality first, customer satisfaction, continuous innovation," Shanghai Fanbao Industrial Factory is dedicated to providing top-notchproducts and comprehensive after-sales service to meet the needs of its users.
