| Brand Name : | FANBAO |
| Model Number : | F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157 |
| Certification : | CE |
| Price : | negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 100sets per month |
| Delivery Time : | 8-15work days |

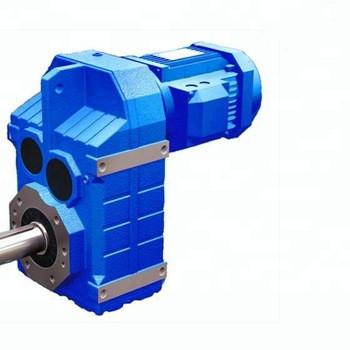

F Series Helical Gear Reducer could enhance your industrial set up . the F Series helical gear reducer is a sleek design, these axis-parallel gear units pack a punch with a robust power range spanning from 130 to 18,000 Nm. When space is at a premium, these gear units stand out as a reliable choice.
The F series parallel-shaft helical gear units are tailor-made for constrained installation spaces. Offering a diverse array of mounting positions and variants, they excel across a wide range of applications, even in challenging installation scenarios. Expect top-tier performance without any compromises. Plus, enjoy the longevity and maintenance-free operation characteristic of our gear units, boasting wear-free gearing with exceptional fatigue strength.
Ranging from 130 Nm to 18,000 Nm in torque rating, our parallel-shaft helical gear units excel in conveying and processing applications. Choose from foot-, flange-, or shaft-mounted options to suit your specific needs. Need precision in positioning tasks? Opt for our parallel-shaft helical gear units with reduced backlash for seamless operations.
Model:
F37, F47, F57, F67, F77, F87, F97, F107, F127, F157
FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157
FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157
FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127, FAZ157
FS37, FS47, FS57, FS67, FS77, FS87, FS97, FS107, FS127, FS157
F37R17, F47R17, F57R37, F67R37, F77R37, F87R57, F97R57, F107R77, F127R77, F107R77, F127R77, F127R87, F157R97
FAS37, FAS47, FAS57, FAS67, FAS77, FAS87, FAS97, FAS107, FAS127, FAS157
FA37R17, FA47R17, FA57R37, FA67R37, FA77R37, FA87R57, FA97R57, FA107R77, FA127R77, FA107R77, FA127R77, FA127R87, FA157R97
FFS37, FFS47, FFS57, FFS67, FFS77, FFS87, FFS97, FFS107, FFS127, FFS157
FF37R17, FF47R17, FF57R37, FF67R37, FF77R37, FF87R57, FF97R57, FF107R77, FF127R77, FF107R77, FF127R77, FF127R87, FF157R97
FAFS37, FAFS47, FAFS57, FAFS67, FAFS77, FAFS87, FAFS97, FAFS107, FAFS127, FAFS157
FAF37R17, FAF47R17, FAF57R37, FAF67R37, FAF77R37, FAF87R57, FAF97R57, FAF107R77, FAF127R77, FAF107R77, FAF127R77, FAF127R87, FAF157R97
FAZS37, FAZS47, FAZS57, FAZS67, FAZS77, FAZS87, FAZS97, FAZS107, FAZS127, FAZS157
FAZ37R17, FAZ47R17, FAZ57R37, FAZ67R37, FAZ77R37, FAZ87R57, FAZ97R57, FAZ107R77, FAZ127R77, FAZ107R77, FAZ127R77, FAZ127R87, FAZ157R97
Apart of type specification :
| SIZE | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| DF DFA DFF DKAZ DFAF DFAZ | ||||||||||
| INPUT POWER RATING(KW) | 0.18-0.30 | 0.18-3.0 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-260 |
| RATIO | 3.81-128.51 | 5.06-189.39 | 5.18-199.70 | 4.21-228.99 | 4.20-271.92 | 4.12-270.64 | 4.68-270.64 | 6.20-255.25 | 4.63-172.33 | 12.07-270.18 |
| MAX TORQUE(N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
| WEIGHT(KG) | 13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
Mounting position and Position of the motor terminal box :
