Vertical Worm Gear Reducer Reduction Gearbox WPA WPS WPX WPO 20 40 60 Ratio

Ask Lasest Price
Brand Name :	FANBAO
Model Number :	NMRV Worm Gear Speed Reducer
Certification :	CE
Price :	negotiation
Payment Terms :	L/C, T/T
Supply Ability :	150sets per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

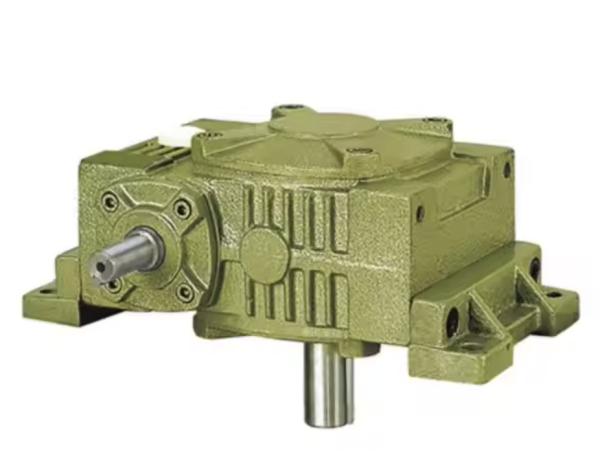

Vertical Worm Gear Reducer Reduction Gearbox WPA WPS WPX WPO 20 40 60 Ratio

WPA/WPS/WPX/WPO 20/ 40/60 Ratio worm gear speed reducer

Description

WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good
wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical
equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.

WP SERIES WORM GEAR SPEED REDUCER FEATURES:

●Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.

●Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.

●The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.

●Higher requirements for lubrication and cooling.

●Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard
parts are used.

Specification :

Model	Ratio	A	AB	B	BB	CC	H	LL	M	N	E	F	G	Z	Input Shaft			Output Shaft			Weight (kg)	Oil(L)
Model	Ratio	A	AB	B	BB	CC	H	LL	M	N	E	F	G	Z	HS	U	T*V	LS	S	W*Y	Weight (kg)	Oil(L)
40		143	87	114	74	40	141	60	90	100	70	80	13	10	25	12	4*2.5	28	14	5*3	4	0.3
50		175	107	150	97	50	180	80	120	140	95	110	15	12	30	12	4*2.5	40	17	5*3	7	0.45
60		198	122	168	112	60	207	90	130	150	105	120	20	12	40	15	5*3	50	22	6*3.5	10	0.55
70		231	140	194	131	70	238	105	150	190	115	150	20	15	40	18	6*3.5	60	28	8*4	15	0.8
80	1/10 1/15 1/20	261	160	214	142	80	270	120	170	220	135	180	20	15	50	22	6*3.5	65	32	10*5	20	1.1
100	1/10 1/15 1/20	322	190	254	169	100	331	150	190	270	155	220	25	15	50	25	8*4	75	38	10*5	35	2.9
120	1/25 1/30 1/40	381	229	282	190	120	423	180	230	320	180	260	30	18	65	30	8*4	85	45	14*5.5	60	4.4
135	1/25 1/30 1/40	433	260	317	210	135	482	215	250	350	200	290	30	18	75	35	10*5	95	55	16*6	80	6.2
147	1/50 1/60	438	262	324	212	147	495	203	250	350	200	280	32	18	80	35	10*5	95	55	16*6	90	6.35
155		504	302	382	252	155	541	235	275	390	220	320	35	21	85	40	12*5	110	60	18*7	110	6.5
175		545	325	402	262	175	594	260	310	430	250	350	40	21	85	45	14*5.5	110	65	18*7	150	8
200		587	350	467	305	200	677	290	360	480	290	390	40	24	95	50	14*5.5	125	70	20*7.5	215	9.3
250		705	420	552	360	250	824	350	460	560	380	480	45	28	110	60	18*7	155	90	25*9	360	18

Product structural drawing

Model and structurere table

Dimensions of outline installation : WPA , WPX, WPO ,WPS

Packing and shipping :

standard export wooden case
