Stainless steel dosing tank vertical speed reducer dosing mixing agitator

Description :

Liquid mixers are mainly used for stirring and mixing after dosing in water treatment, so that the liquid can be mixed more evenly. They are suitable for mixing liquids and liquids, mixing liquids and powders, and mixing liquids and solids. For liquids with relatively high viscosity, a dosing mixer with larger power should be considered when selecting the model.

The following specifically introduces three commonly used types of mixers:

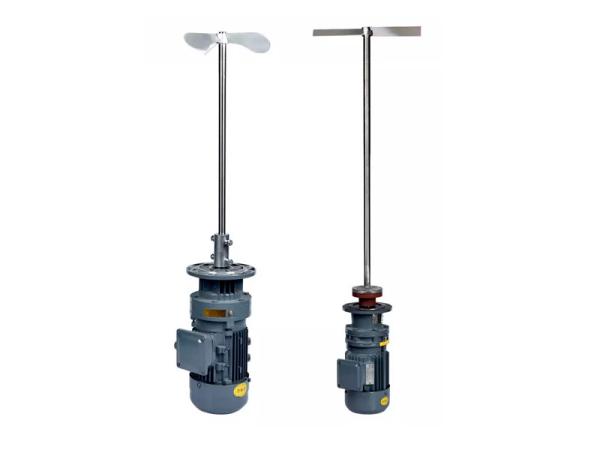

1. Three-blade propeller mixer The three-blade propeller type is generally a three-blade propeller type. It is the most typical axial flow agitator with high liquid discharge and low shear performance. Because of its strong circulation capacity and low power consumption, it can best reflect its advantages in low viscosity and small volume mixing and stirring. Therefore, it is widely used in low viscosity liquid mixing, reaction, suspension and dissolution with a small solid-liquid ratio. The detachable propeller blades are generally three-petal, flexible to disassemble and assemble, and convenient to use in occasions where they need to be disassembled into small pieces.

2. Inclined blade paddle mixer Inclined blade paddle can be divided into integral paddle type and detachable paddle type. Generally, it is a two-blade 45-degree bevel form, which plays the role of axial diversion and radial diversion. The liquid flow pattern in the mixing is more complex than that of the straight blade, and the discharge energy is higher than that of the straight blade. The comprehensive effect is better. If two or more layers are used, the effect is better. It is convenient to disassemble and assemble during use, and the maintenance is simple. The actual frequency of use is relatively high.

3. Anchor type and frame type mixer This type of mixer is generally used for slow large-scale mixing. Commonly used ones are right-angle frame type, right-angle cone bottom frame type, elliptical bottom frame type, anchor type, etc., which are suitable for mixing and reaction of high-viscosity liquids. Horizontal annular flow is generated. If it is a folded blade or angle steel blade, the vortex near the blade can be increased. Vertical blades and beams can also be added to the blade as needed to increase the mixing range.

Note: Our factory can customize various complete sets of mixer products according to customer needs. Please contact our factory's technical department before ordering to avoid problems such as selection or configuration errors.

Specification for dosing mixing agitator

Features :

Powerful torque vertical industrial-grade agitator , efficient mixing ,not sloppily

enough power core components 5 advantages

1) strength the motor sturdy and explosion-proof ,safe production

2) pure copper core , pure copper coil, high efficiency and energy saving , long service life

3) low noise , stable operation , high overload capacity with low noise

4) thickened shell motor sheel is thickened , integrated , not easy to scratch

5) anticorrosive stainless steel impeller , can be reversed ,stainless steel corrosion-resistant , no pollution

To do every agitator mixing by heart , strong power ,full copper core motor , stainless steel blade , uniform mixing ,safe and low consumption

Shanghai Fanbao Industrial Factory, established in 2009, specializes in the research and development as well as the manufacturing of various industrial equipment including mixing tanks, agitators, industrial mixers, PE tanks, stainless steel mixing tanks, liquid mixers, powder mixers, cycloid reducers, gear reducers, environmental protection water treatment mixing equipment, precision rotary valves, and rotary airlock feeders.

With a strong focus on R&D, design, manufacturing, and rigorous testing methods, the company boasts a comprehensive technical expertise. It stands out among domestic manufacturers due to its wide range of product specifications and varieties.

In recent years, Shanghai Fanbao has significantly increased its investment in research and development. The company now features a dedicated design team to enhance the production of reducer products. Offering a diverse selection of mixers, rotary valves, and discharge valves with hundreds of specifications, the materials used include cast carbon, carbon steel, stainless steel, and more to cater to various industries, media types, and working conditions.

Their products such as mixing tanks, cycloidal gear reducers, helical gear reducers, rotary airlock valves, and rotary feeders find extensive applications across industries like grain and oil, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, and dust removal.

Adhering to the principle of "quality first, customer satisfaction, continuous innovation," Shanghai Fanbao Industrial Factory is dedicated to providing top-notchproducts and comprehensive after-sales service to meet the needs of its users.
