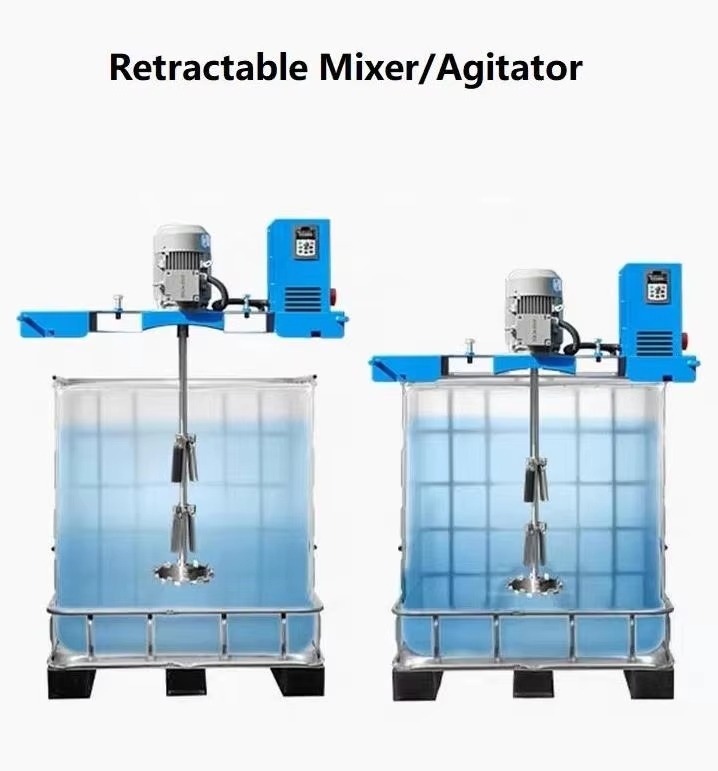

High Speed Electric Mixer 265 Gallon IBC TANK Cream Homogenizing IBC Ton Barrel Mixing Machine

Description :

IBC Tons refer to IBC Intermediate Bulk Containers. It is an essential tool for modern storage and transportation of liquid products. The container is composed of an inner container and a metal frame. The inner container is blow-molded with high molecular weight and high density polyethylene, which has high strength, corrosion resistance and good hygiene. We have a variety of liquid mixers, some of the parameters can be customized. If you need to choose the type or are interested in this product, please send us an inquiry, there will be professional technicians to provide services for you.

IBC tank specification :

Product number	capacity	Length (mm)	width (mm)	height (mm)	caliber (mm)	Wall thickness (mm)	weight (KG)	volume (m³)
500L	500L Liner	960	580	970	150	4	15	0.55
	500L Full set	1000	640	1150	150	4	41	0.75
	Horizontal 500L Liner	1140	950	550	150/310/ 450/650	4	18	0.6
	Horizontal 500L Full set	1200	1000	700	150/310/ 450/650	4		0.85
1000L	Blow molding 1000L Liner	1150	960	950	150	2	15	1.1
	Blow molding 1000L Full set	1200	1000	1150	150	2	55	1.4
	Rotomolding 1000L Liner	1150	960	950	150/310/ 450/650	5	26	1.1
	Rotomolding 1000LFull set	1200	1000	1150	150/310/ 450/650	5	66	1.4
1500L	Rotomolding 1500L Liner	1150	960	1490	150	5	50	1.65
	Rotomolding 1500L Full set	1200	1000	1620	150	5		1.95
valve	DN50	Can also be made flat without valve
	DN80	Can also be made flat without valve

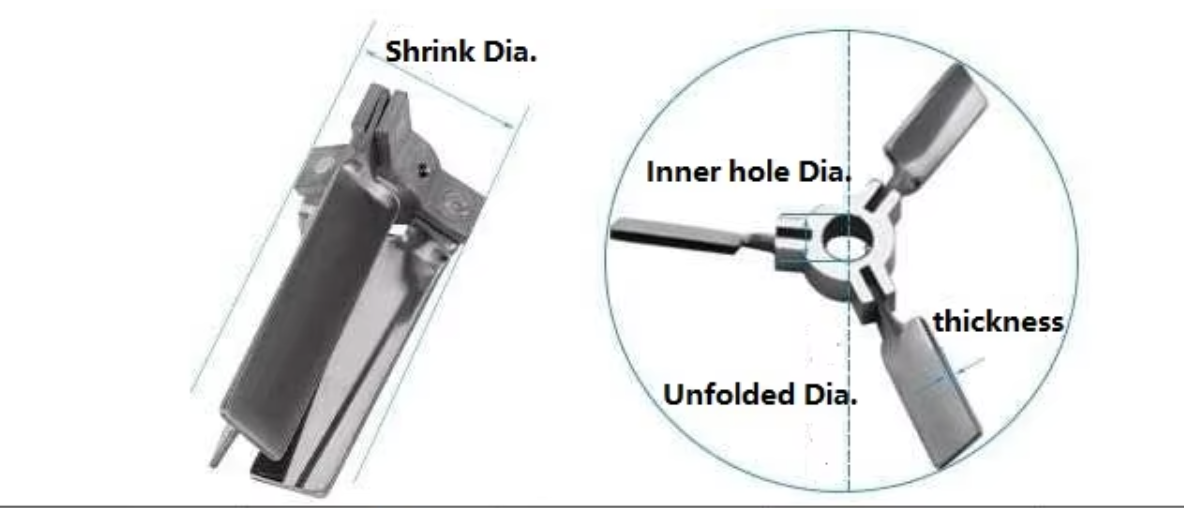

Unfolded diameter	Inner hole diameter	Shrink diameter	Blade thickness	Blade width
70mm	8mm	32mm	2mm	10mm
100mm	8mm	32mm	2mm	10mm
120mm	8mm	32mm	2mm	10mm
200mm	12mm	55mm	3mm	25mm
200mm	16mm	55mm	3mm	25mm
250mm	12mm	55mm	3mm	25mm
250mm	16mm	55mm	3mm	25mm
300mm	12mm	55mm	3mm	25mm
300mm	16mm	55mm	3mm	25mm
350mm	20mm	98mm	4mm	40mm
350mm	25mm	98mm	4mm	40mm
400mm	20mm	98mm	4mm	40mm
400mm	25mm	98mm	4mm	40mm
500mm	30mm	98mm	5mm	40mm
500mm	35mm	98mm	5mm	40mm
600mm	50mm	113mm	5mm	40mm

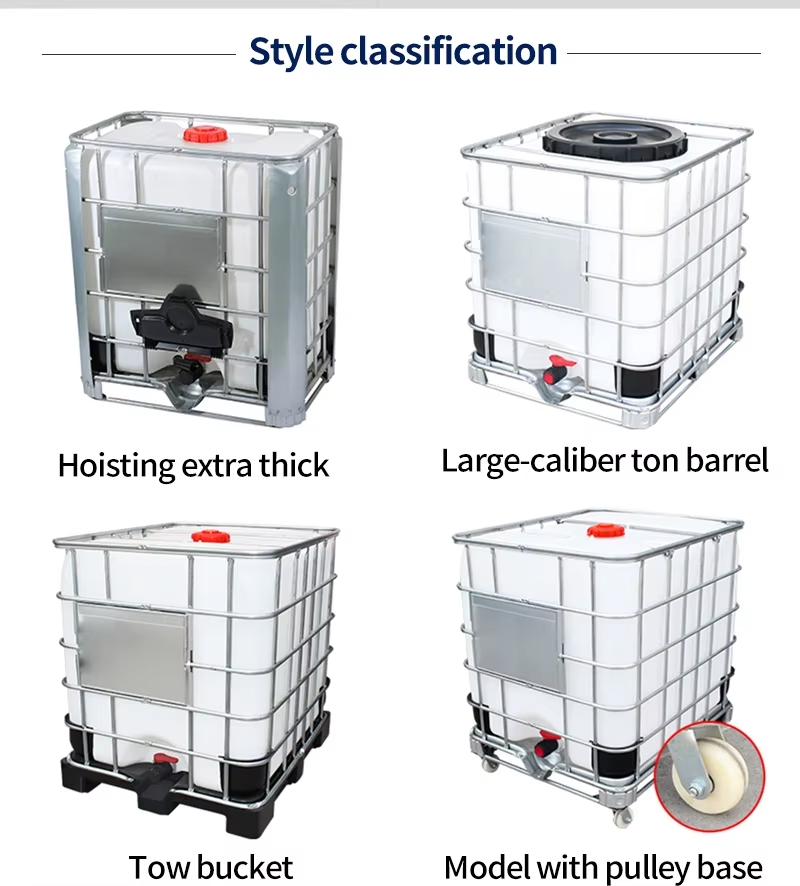

Four types of IBC TANK for your choise

hoisting extra thick large caliber ton barrel tow bucket model with pulley base

the innter tank is made of high-density polyethylene (hdpe) plastic ,which is resistant to acid and alkali , corrosion , high temperature and abrasion .

the inner container protects the corners to make the barrel safer when transporting

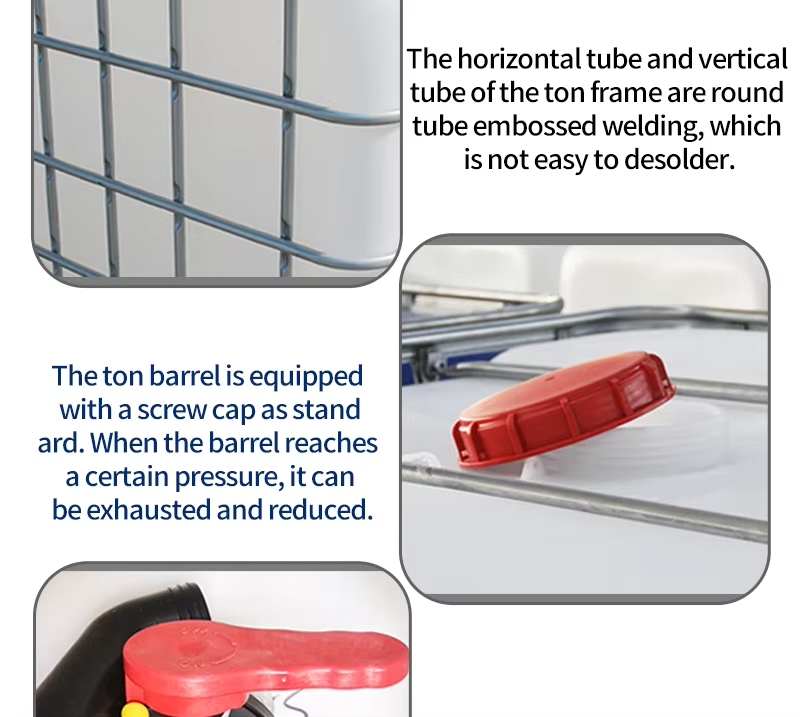

The horizontal tube and vertical tube of the ton frame are round tube embossed welding , which is not easy to desolder .

The Ton barrel is equipped with a screw cap as stand ard , when the barrel reaches a certain pressure , it can be exhausted and reduced .

Shanghai Fanbao Industrial Factory, established in 2009, specializes in the research and development as well as the manufacturing of various industrial equipment including mixing tanks, agitators, industrial mixers, PE tanks, stainless steel mixing tanks, liquid mixers, powder mixers, cycloid reducers, gear reducers, environmental protection water treatment mixing equipment, precision rotary valves, and rotary airlock feeders.

With a strong focus on R&D, design, manufacturing, and rigorous testing methods, the company boasts a comprehensive technical expertise. It stands out among domestic manufacturers due to its wide range of product specifications and varieties.

In recent years, Shanghai Fanbao has significantly increased its investment in research and development. The company now features a dedicated design team to enhance the production of reducer products. Offering a diverse selection of mixers, rotary valves, and discharge valves with hundreds of specifications, the materials used include cast carbon, carbon steel, stainless steel, and more to cater to various industries, media types, and working conditions.

Their products such as mixing tanks, cycloidal gear reducers, helical gear reducers, rotary airlock valves, and rotary feeders find extensive applications across industries like grain and oil, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, and dust removal.

Adhering to the principle of "quality first, customer satisfaction, continuous innovation," Shanghai Fanbao Industrial Factory is dedicated to providing top-notchproducts and comprehensive after-sales service to meet the needs of its users.
