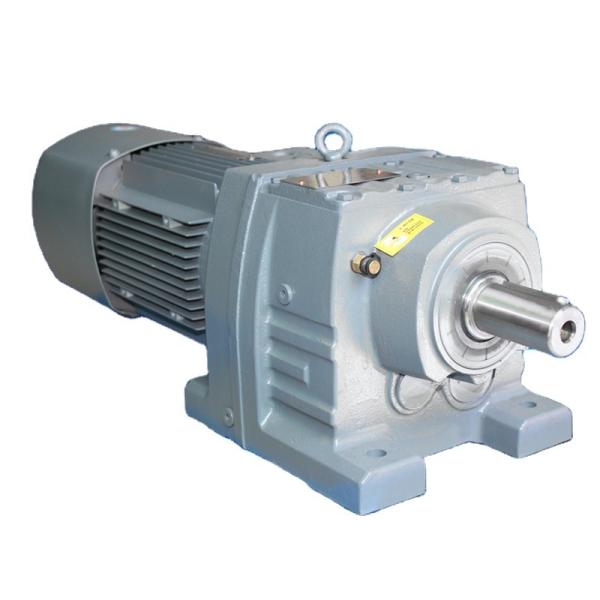

Helical Gear Reducer Geared Gearbox With High Quality 2hp Electric Motor For Conveyor Belt Coaxial Helical

Description:

RX series helical gearbox is one type of R series single-stage helical gearbox with foot mounted. The transmission ratio of the R series helical gearbox is finely graded to meet different working conditions based on the customer’s need. R series helical gearbox realizes mechatronics, high transmission efficiency, and low energy consumption. It is mostly used in metallurgy, sewage treatment, chemical industry, pharmaceutical, and other industries. Shengjie’s R series gearbox is designed and manufactured on the basis of the modular combination system. There are many motor combinations, installation forms, and structural schemes.

Four Basic Types of R Series Helical Gearbox

R : foot mounted

RF : flange mounted

RX : Single-stage foot mounted

RXF :Single-stage flange mounted

Specification:

RXF Series Single Stage Helical Gearbox Parameters:

Size	37	57	67	77	87	97	107	127	157
Structure	RX RXF
Input nower rating (kW)	0.18-1.1	0.18-5.5	0.18-7.5	1.1-11	3-22	5.5-30	7.5-45	7.5-90	11-132
Ratio	1.62-4.43	1.3-5.5	1.4-6.07	1.42-8.00	1.39-8.65	1.42-8.23	1.44-6.63	1.51-6.2	1.57-6.2
Permissible torque(N.M)	20	70	135	215	400	600	830	1110	1680

Shanghai Fanbao Industrial Factory, established in 2009, specializes in the research and development as well as the manufacturing of various industrial equipment including mixing tanks, agitators, industrial mixers, PE tanks, stainless steel mixing tanks, liquid mixers, powder mixers, cycloid reducers, gear reducers, environmental protection water treatment mixing equipment, precision rotary valves, and rotary airlock feeders.

With a strong focus on R&D, design, manufacturing, and rigorous testing methods, the company boasts a comprehensive technical expertise. It stands out among domestic manufacturers due to its wide range of product specifications and varieties.

In recent years, Shanghai Fanbao has significantly increased its investment in research and development. The company now features a dedicated design team to enhance the production of reducer products. Offering a diverse selection of mixers, rotary valves, and discharge valves with hundreds of specifications, the materials used include cast carbon, carbon steel, stainless steel, and more to cater to various industries, media types, and working conditions.

Their products such as mixing tanks, cycloidal gear reducers, helical gear reducers, rotary airlock valves, and rotary feeders find extensive applications across industries like grain and oil, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, and dust removal.

Adhering to the principle of "quality first, customer satisfaction, continuous innovation," Shanghai Fanbao Industrial Factory is dedicated to providing top-notchproducts and comprehensive after-sales service to meet the needs of its users.
