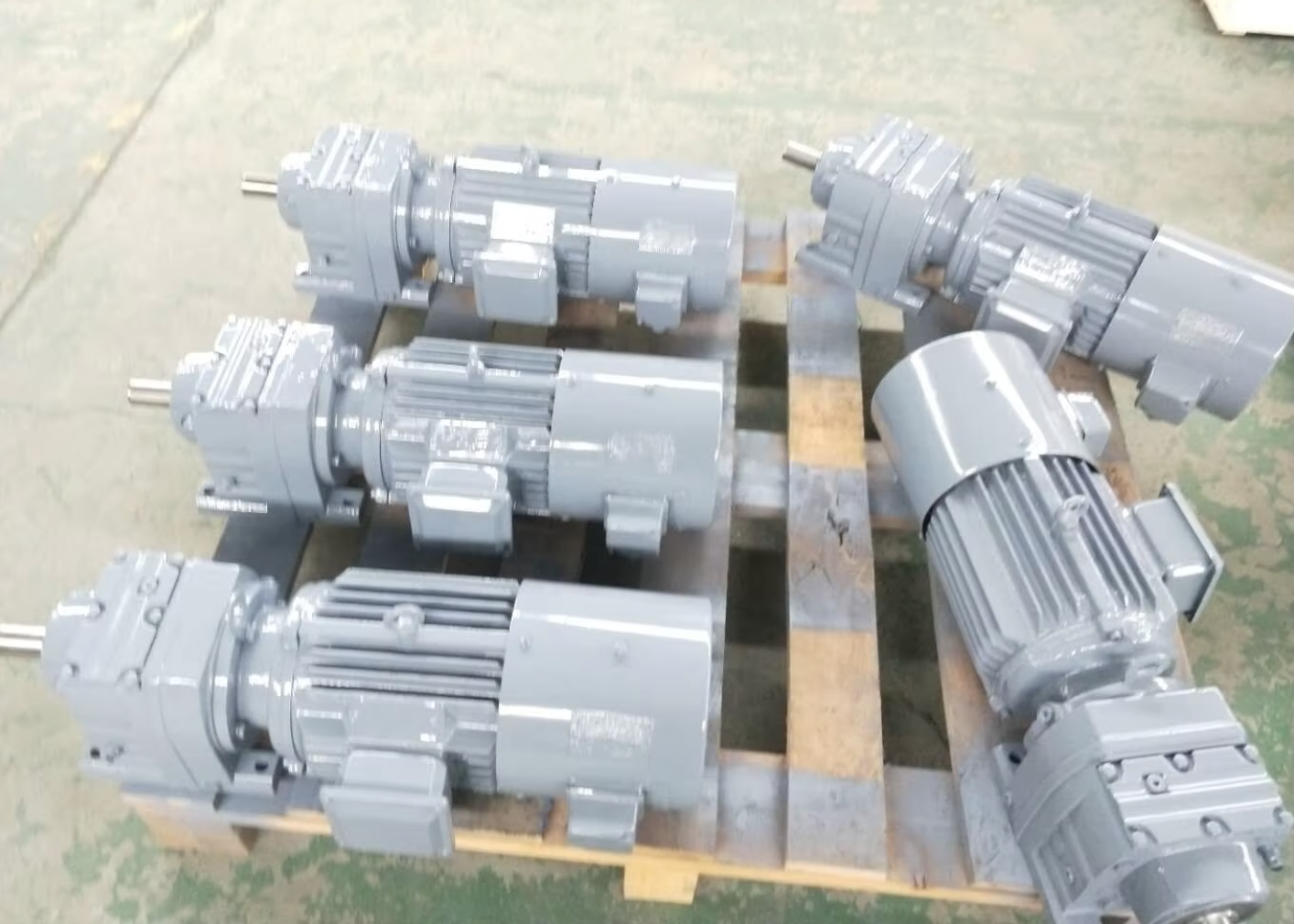

RF Vertical Shaft Flange-Mounted Helical Gearbox For Drilling Machines
Description:
R series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.
It has beenwidely used in metallurgy, mining, petroleum, chemical industry, ship, light industry, food, textile, printing and dyeing.
Specification :
| Size | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
| Structure | DR DRF DRX DRXF | |||||||||||
| Input power rating (KW) | 0.18-0.75 | 0.18-3.0 | 0.18-5.5 | 0.18-7.5 | 0.18-7.5 | 0.18-11 | 0.55-22 | 0.55-30 | 2.2-45 | 5.5-55 | 11-90 | 181-160 |
| Ratio | 1.6-135.09 | 1.6-134.82 | 3.83-176.88 | 1.3-186.89 | 1.4-199.81 | 1.42-195.24 | 1.39-246.54 | 1.42-289.60 | 1.44-245.5 | 1.56-223.34 | 5.00-163.46 | 1.63-196.41 |
| Maximun torque (N.m) | 130 | 200 | 400 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 | 50000 |
| Weight(KG) | 8 | 14 | 23 | 39 | 70 | 100 | 150 | 250 | 380 | 610 | ||
| SIZE | ShaftDia Solid(mm) | Center Height | OutputFlange Dia. (mm) | Power (kw) | Ratio | Permissible Torque(n.m) | Weight (kgs) |
| 17 | φ20k6 | 75 | φ120/140 | 0.18-0.75 | 3.83-74.84 | 85 | 4 |
| 27 | φ25k6 | 90 | φ120/140 | 0.18-3.00 | 3.37-135.09 | 130 | 5.5 |
| 37 | φ25k6 | 90 | φ160/200 | 0.18-3.00 | 3.33-134.82 | 200 | 8.5 |
| 47 | φ30k6 | 115 | φ160/200 | 0.18-5.50 | 3.83-176.88 | 300 | 10 |
| 57 | φ35k6 | 115 | φ200/250 | 0.18-7.50 | 4.39-186.89 | 450 | 18 |
| 67 | 035k6 | 130 | φ200/250 | 0.18-7.50 | 4.29-199.81 | 600 | 25 |
| 77 | φ40k6 | 140 | 0250/300 | 0.18-11.00 | 5.21-195.24 | 820 | 36 |
| 87 | φ50k6 | 180 | φ300/350 | 0.55-22.00 | 5.36-246.54 | 1550 | 63 |
| 97 | φ60m6 | 225 | φ350/450 | 0.55-30.00 | 4.49-289.74 | 3000 | 101 |
| 107 | φ70m6 | 250 | 0350/450 | 2.20-45.00 | 5.06-249.16 | 4300 | 153 |
| 137 | φ90m6 | 315 | φ450/550 | 5.50-55.00 | 5.15-222.60 | 8000 | 220 |
| 147 | 0110m6 | 335 | 0450/550 | 11.00-90.00 | 5.0-16.31 | 13000 | 400 |
| 167 | φ120m6 | 425 | φ550/660 | 11.00-160.00 | 10.24-229.71 | 18000 | 700 |
Features :
Our R series helical gear reducers are based on the building block design, so its convenientfor them to fit all types of motors or to connect with other power input, and its possiblefor different types of machines to combine or connect.
1. Compact construction, saves space for mounting, large load-bearing capacity and long life.
2. High transmission efficiency and low noise. A single machine can reach a transmission efficiency as much as 96%.
3. Precise division of transmission ratio with a wide range. The combination of machines can produce a larger transmission ratio at a low output rotational speed.
4. Installation: Foot-mounted, B5/B14 flange-mounted, input shaft, hollow output shaft, etc.
|
|
