| Brand Name : | FANBAO |
| Model Number : | K KA KF KAF |
| Certification : | CE |
| Price : | negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 100sets per month |
| Delivery Time : | 8-15work days |

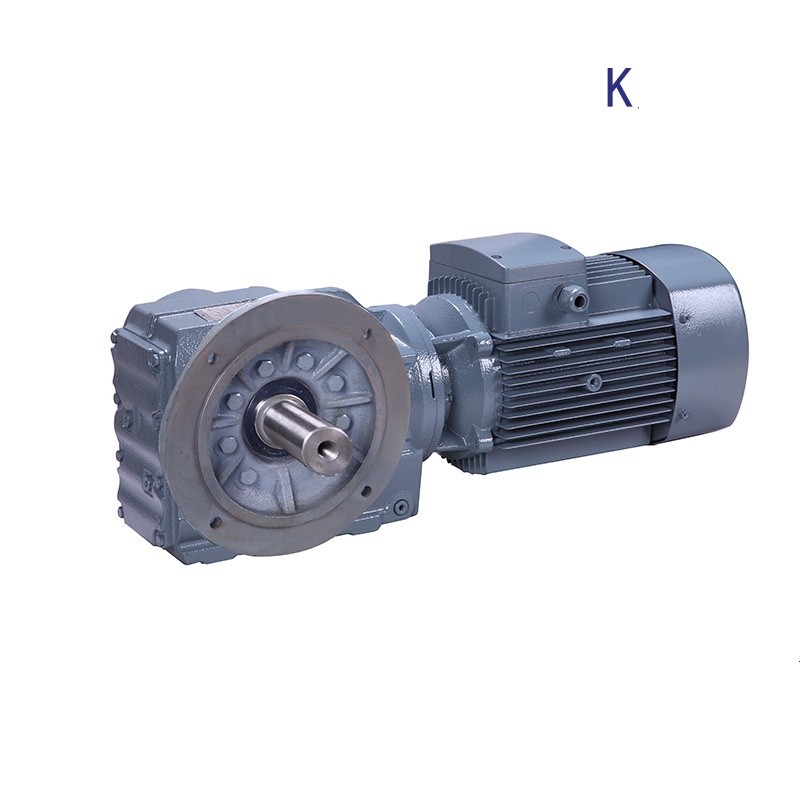

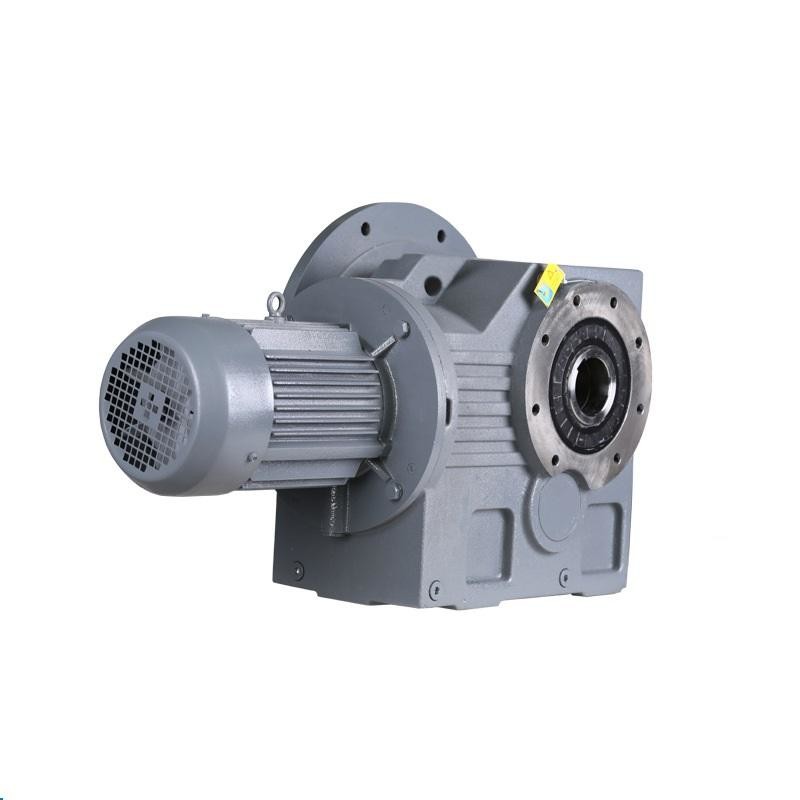

K Series Helical Bevel Gear Motor Gearbox is tailored to meet a variety of industry and application requirements, including manufacturing plants, machinery repair shops, food & beverage factories, construction works, and energy & mining sectors. It also supports customised OEM, ODM, and OBM solutions.
2.Product features a 12-month warranty, 10-62800N.m output torque, 45KG weight, and 0.1-185rpm output speed. Its versatile input form options include IEC flange, direct with motor, and shaft input, catering to a wider range of clients.
3.This speed reducer is versatile, suitable for both foot-mounted and flange-mounted applications. It is compatible with several types of assembly, including K, KF, KA, KAF, KHZ, KHF, KH, KV, KVF, and KAZ.
4.Robust in construction, the gearbox features a cast iron housing and comes in a range of colors, including blue (RAL5010) and silver grey (RAL9022), depending on customer preferences.
5.This K Series transmission gearbox leverages state-of-the-art helical bevel gear and helical worm gear technology to deliver exceptional efficiency, quiet operation, and precision performance. It's available in a wide ratio range of 5.36-197.37, ensuring that it caters to diverse requirements in various industries.
| Input power rating and maximum torque | ||||||||||||||
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 | ||
Structure | DK DKA DKF DKAF DKAZ DKAT DKAB | |||||||||||||
input power rating(kw | 0.18- 3.0 | 0.18- 3.0 | 0.18- 5.5 | 0.18- 5.5 | 0.37 1.1 | 0.75- 22 | 1.1-30 | 3-45 | 7.5-90 | 11-160 | 11-200 | 18.5- 200 | ||
Ratio | 5.36~ 106.38 | 5.81≈ 131.87 | 6.57~ 145.15 | 7.14~ 144.79 | 7.22- 192.18 | 7.19~ 192.27 | 8.95- 175.47 | 8.74 141.93 | 8.68- 146.07 | 12.66~ 150.03 | 17.35~ 164.44 | 17.97- 178.37 | ||
torgueNm | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 | 32000 | 50000 | ||
| Gear motor weight | ||||||||||||||
Slze | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 | ||
| (kg) Weight | 11 | 20 | 27 | 33 | 57 | 85 | 130 | 250 | 380 | 610 | 1015 | 1700 | ||
| Thewelghts aremean values,only for relerence. )Maximum torque means theblggest oneofthe maximum torque relatedtothe dfferent ratiofor the specied size. | ||||||||||||||
Mounting position and Position of the motor terminal box :
|
|
