| Brand Name : | FANBAO |
| Model Number : | K KA KF KAF |
| Certification : | CE |
| Price : | negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 100sets per month |
| Delivery Time : | 8-15work days |

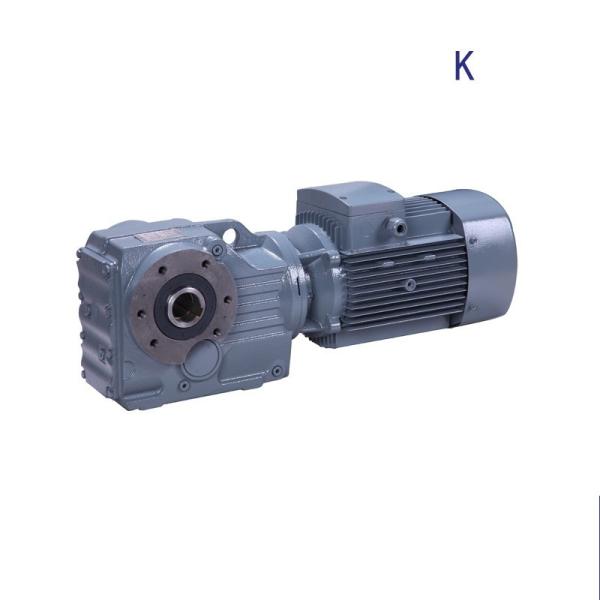

K series gear reducer, combined with international technical requirements of manufacturing, high technology content; space-saving, reliable and durable to withstand high overload capacity, power up to 132KW; low energy consumption, superior performance, speed reducer efficiency up to 95% or more .
Maintenance :
Firstly, pay attention to the construction of the installation site of the reducer. When installing , the ground is required to be flat, and the ventilation conditions should be as good as possible. It is necessary to know that the installation site has a great influence on the use of the reducer in the future.
Secondly, pay attention to routine maintenance reducer, not only, not to care, which is k taboo series reducer used more than good equipment, no maintenance, but also his life of at least a third. Therefore , the daily maintenance of the k series reducer is very important : the use and replacement of lubricating oil, check whether the installation foundation, seals, transmission shaft, etc. are normal, and the maintenance of important parts such as the housing except for the shovel. The gearbox cleaning and maintenance machine uses the original oil supply and discharge system of the gearbox and the filtered old oil to realize the functions of cleaning the gearbox, quickly filtering waste oil, and filling new oil. The operation process does not change the hardware facilities or Add cleaning agent to ensure the safe operation of the gearbox, which can extend the service life.
| Input power rating and maximum torque | ||||||||||||||
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 | ||
Structure | DK DKA DKF DKAF DKAZ DKAT DKAB | |||||||||||||
input power rating(kw | 0.18- 3.0 | 0.18- 3.0 | 0.18- 5.5 | 0.18- 5.5 | 0.37 1.1 | 0.75- 22 | 1.1-30 | 3-45 | 7.5-90 | 11-160 | 11-200 | 18.5- 200 | ||
Ratio | 5.36~ 106.38 | 5.81≈ 131.87 | 6.57~ 145.15 | 7.14~ 144.79 | 7.22- 192.18 | 7.19~ 192.27 | 8.95- 175.47 | 8.74 141.93 | 8.68- 146.07 | 12.66~ 150.03 | 17.35~ 164.44 | 17.97- 178.37 | ||
torgueNm | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 | 32000 | 50000 | ||
| Gear motor weight | ||||||||||||||
Slze | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 | ||
| (kg) Weight | 11 | 20 | 27 | 33 | 57 | 85 | 130 | 250 | 380 | 610 | 1015 | 1700 | ||
| Thewelghts aremean values,only for relerence. )Maximum torque means theblggest oneofthe maximum torque relatedtothe dfferent ratiofor the specied size. | ||||||||||||||
Mounting position and Position of the motor terminal box :
|
|
