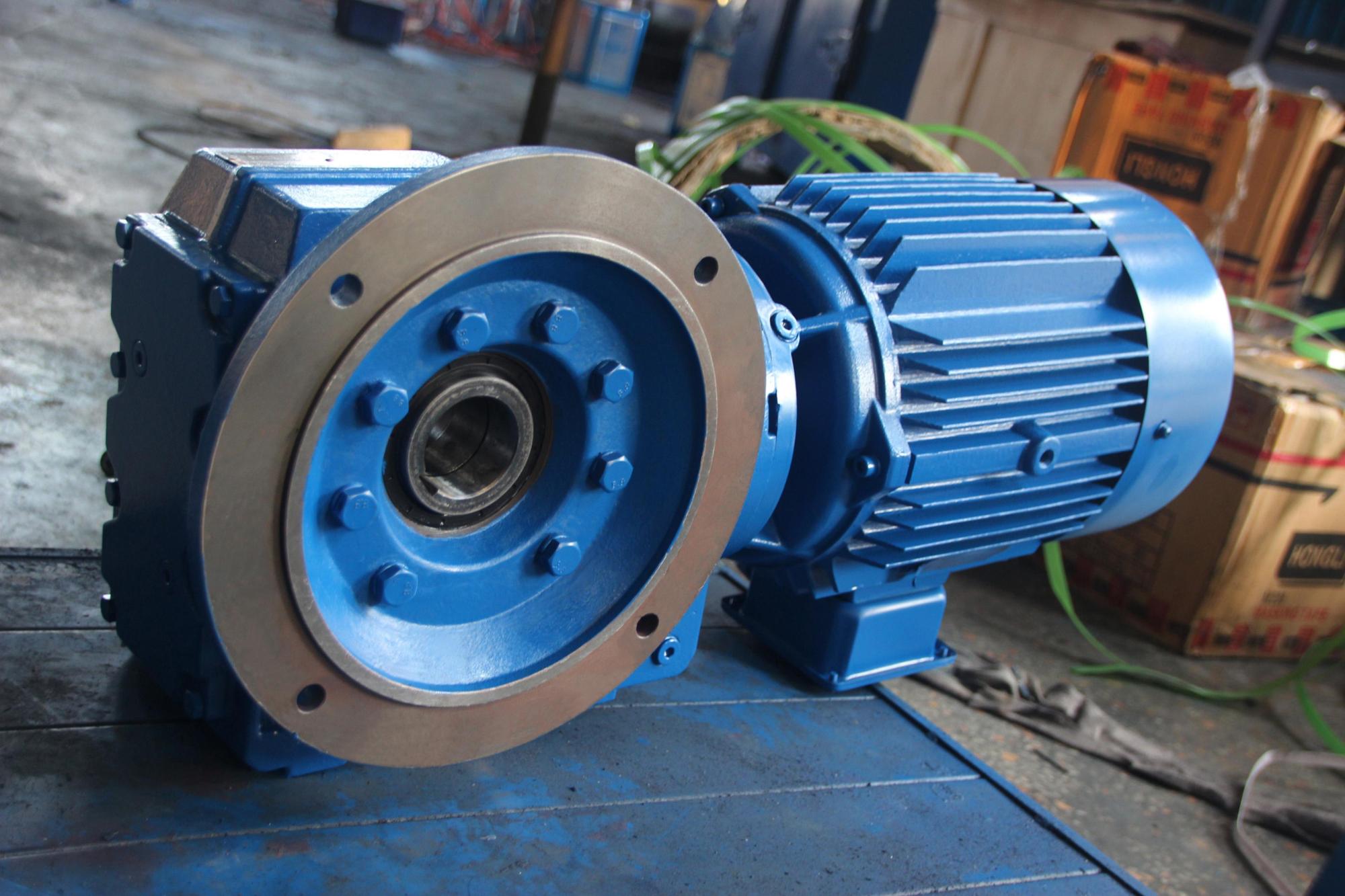

K/KA/KAF37-187 series bevel helical gear reducer for agitator

Description:

K series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.

• Food processing machine

• Construction machinery

• Wood processing machine

• Conveyors

• Agriculture machine

• Crane/ mineral machinery

Product processing :

Box processing process
Mechanical modeling of metal mold → casting on production line → artificial aging treatment → shot peening → machining center processing → three-coordinate detector detection

Gear processing process
Forging → normalizing > roughing → finishing car → hobbing → tooth end chamfering → carburizing and quenching (HRC58-62) → shot blasting → grinding end face and inner hole → grinding tooth → accuracy detection (tooth shape, tooth direction, tooth Distance, level 6) → wire cutting keyway > magnetic particle inspection → ultrasonic cleaning and rust prevention

Tooth shaft machining process
Forging a normal fire and a rough car (including the center hole) a finishing car → hobbing → milling key slot → carburizing quenching (HRC58-62) a shot blasting a grinding center hole → grinding outer circle → grinding tooth → detection (tooth Shape, tooth direction, pitch, etc., level 6) → magnetic particle inspection → ultrasonic cleaning and rust prevention

Shanghai Fanbao Industrial Factory, established in 2009, specializes in the research and development as well as the manufacturing of various industrial equipment including mixing tanks, agitators, industrial mixers, PE tanks, stainless steel mixing tanks, liquid mixers, powder mixers, cycloid reducers, gear reducers, environmental protection water treatment mixing equipment, precision rotary valves, and rotary airlock feeders.

With a strong focus on R&D, design, manufacturing, and rigorous testing methods, the company boasts a comprehensive technical expertise. It stands out among domestic manufacturers due to its wide range of product specifications and varieties.

In recent years, Shanghai Fanbao has significantly increased its investment in research and development. The company now features a dedicated design team to enhance the production of reducer products. Offering a diverse selection of mixers, rotary valves, and discharge valves with hundreds of specifications, the materials used include cast carbon, carbon steel, stainless steel, and more to cater to various industries, media types, and working conditions.

Their products such as mixing tanks, cycloidal gear reducers, helical gear reducers, rotary airlock valves, and rotary feeders find extensive applications across industries like grain and oil, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, and dust removal.

Adhering to the principle of "quality first, customer satisfaction, continuous innovation," Shanghai Fanbao Industrial Factory is dedicated to providing top-notchproducts and comprehensive after-sales service to meet the needs of its users.
